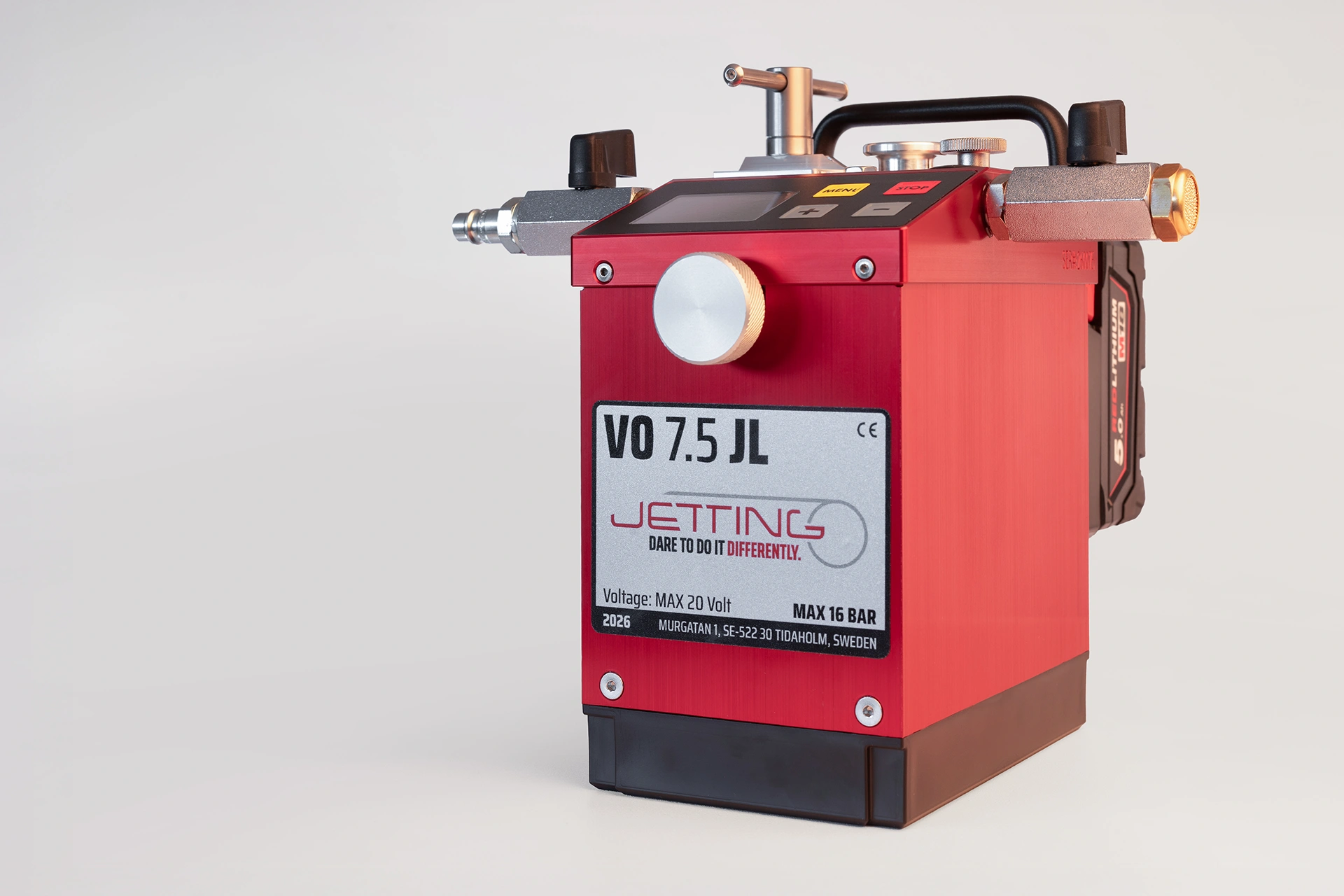

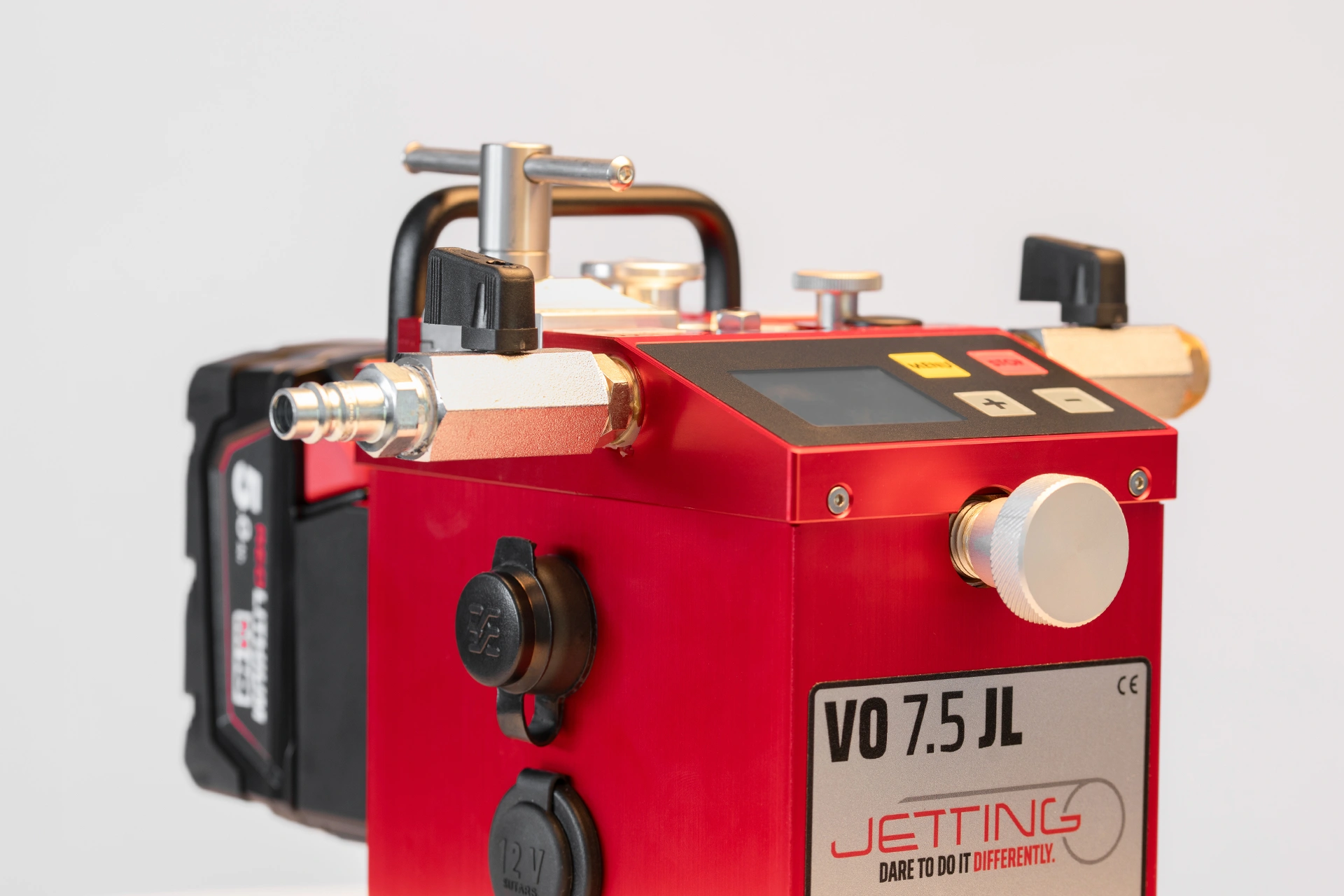

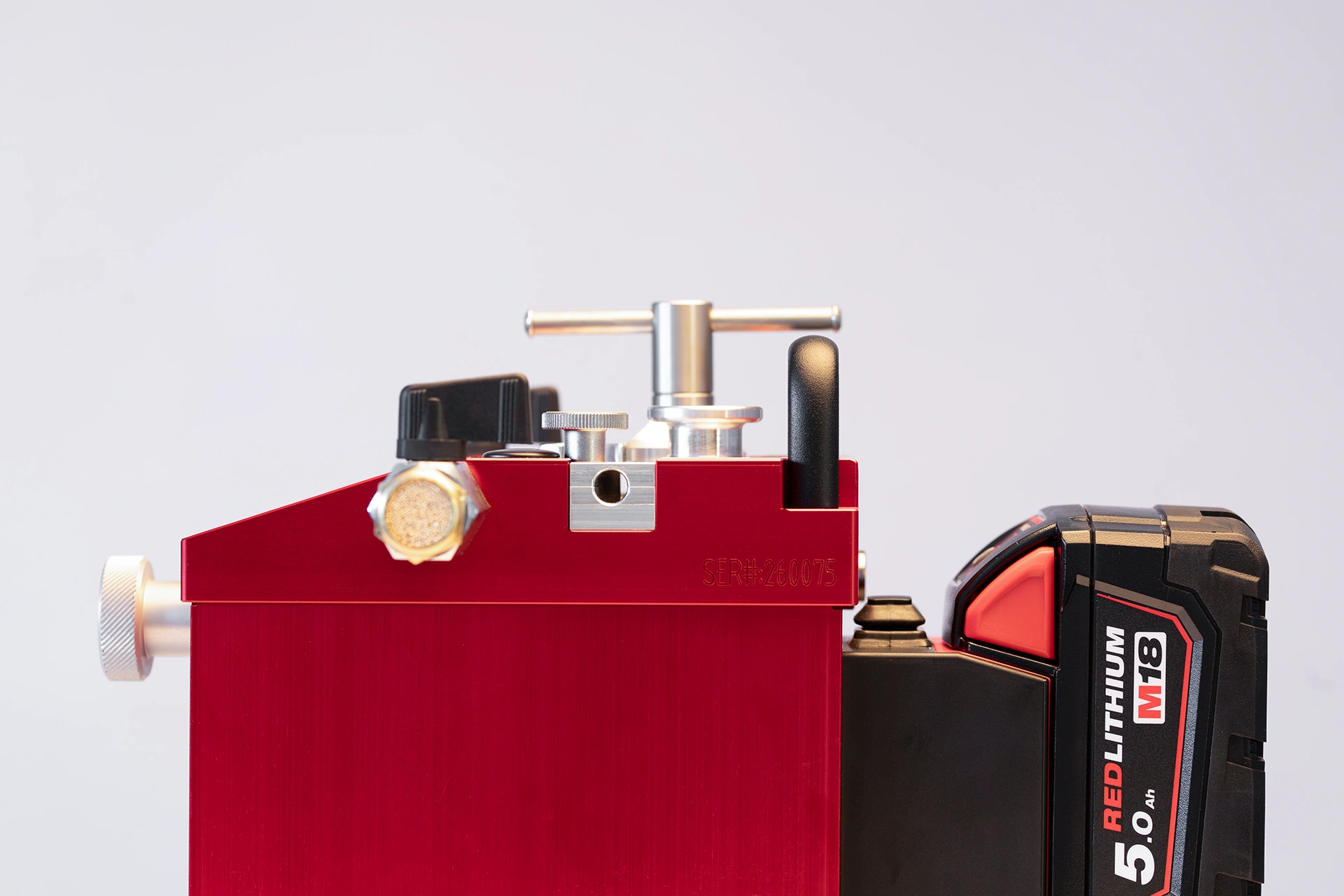

V0 7.5 Fiber blowing machine
Compact and Powerful electric fiber blowing machine
Extremely compact, electrically operated fiber blowing machine optimized for FTTX installation of blown fiber (EPFU) and micro/nano cables, ranging from 0.8 to 7.5 mm into ducts/counduits from 3 to 16 mm.
A fully digital control system with soft start, ultra-fast electronic fiber protection and memory functions, combined with a powerful 300 N motor, makes the machine highly flexible and efficient to use. The machine can be operated directly from its transport case.
Technical data
- Min / Max pressure: 120/232 psi
- Max Speed: 394 ft/min
- Battery: 18 V, 5 Ah Milwaukee connector
- Pushing force: Up to 67 lbf
- Cable diameter: 0.8 – 7.5 mm
- Duct/conduit diameter: 3 – 16 mm
- Weight: 7.9 lbs
- Air connection: Std 3/8” Cejn
- W x D x H: 23.6 × 19.7 × 11.8 in
Jetting V0 7.5 Features & Specifications
- Electrically operated with battery connection
- Ultra-fast electronic stopping and slipping protection (<60 ms)

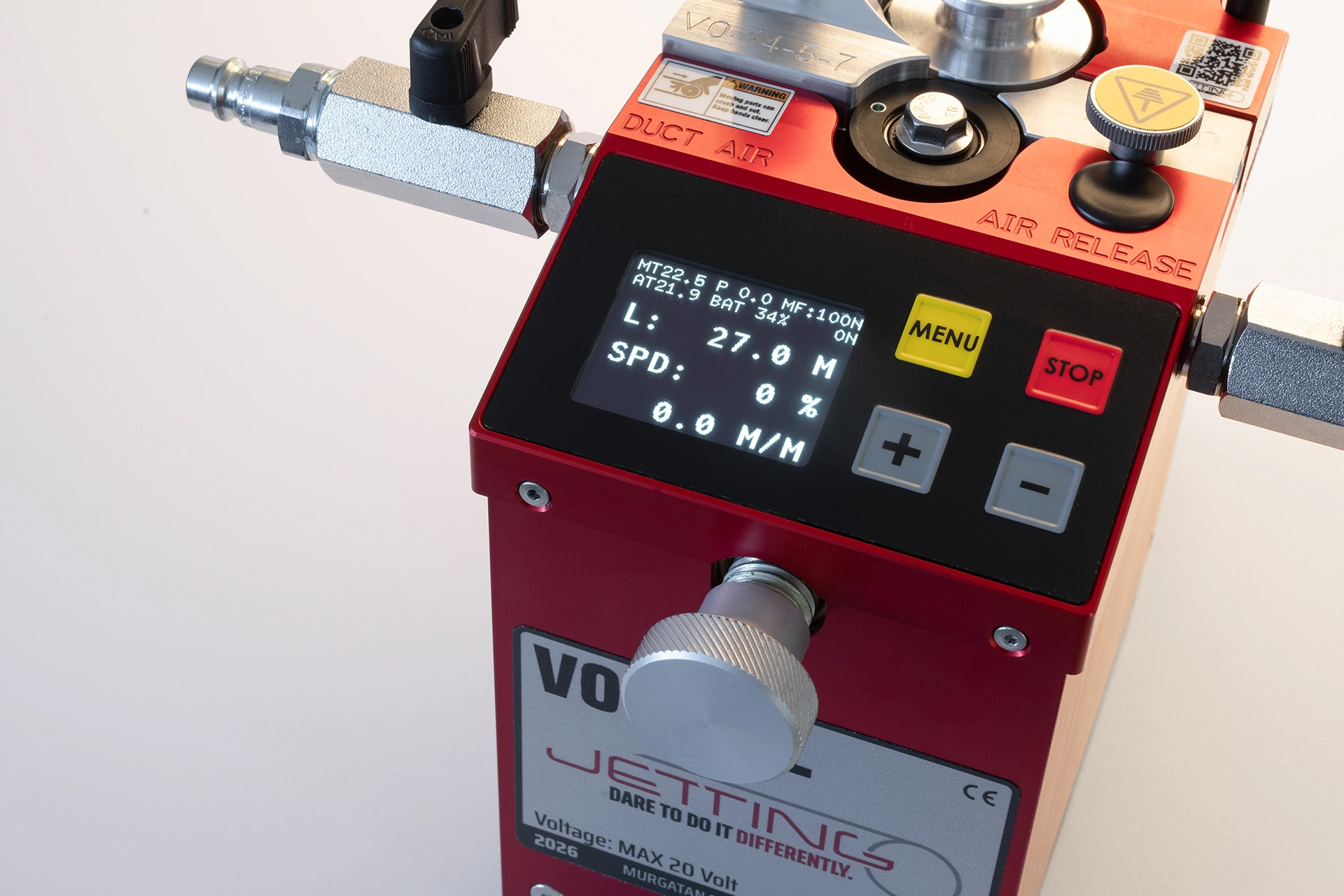

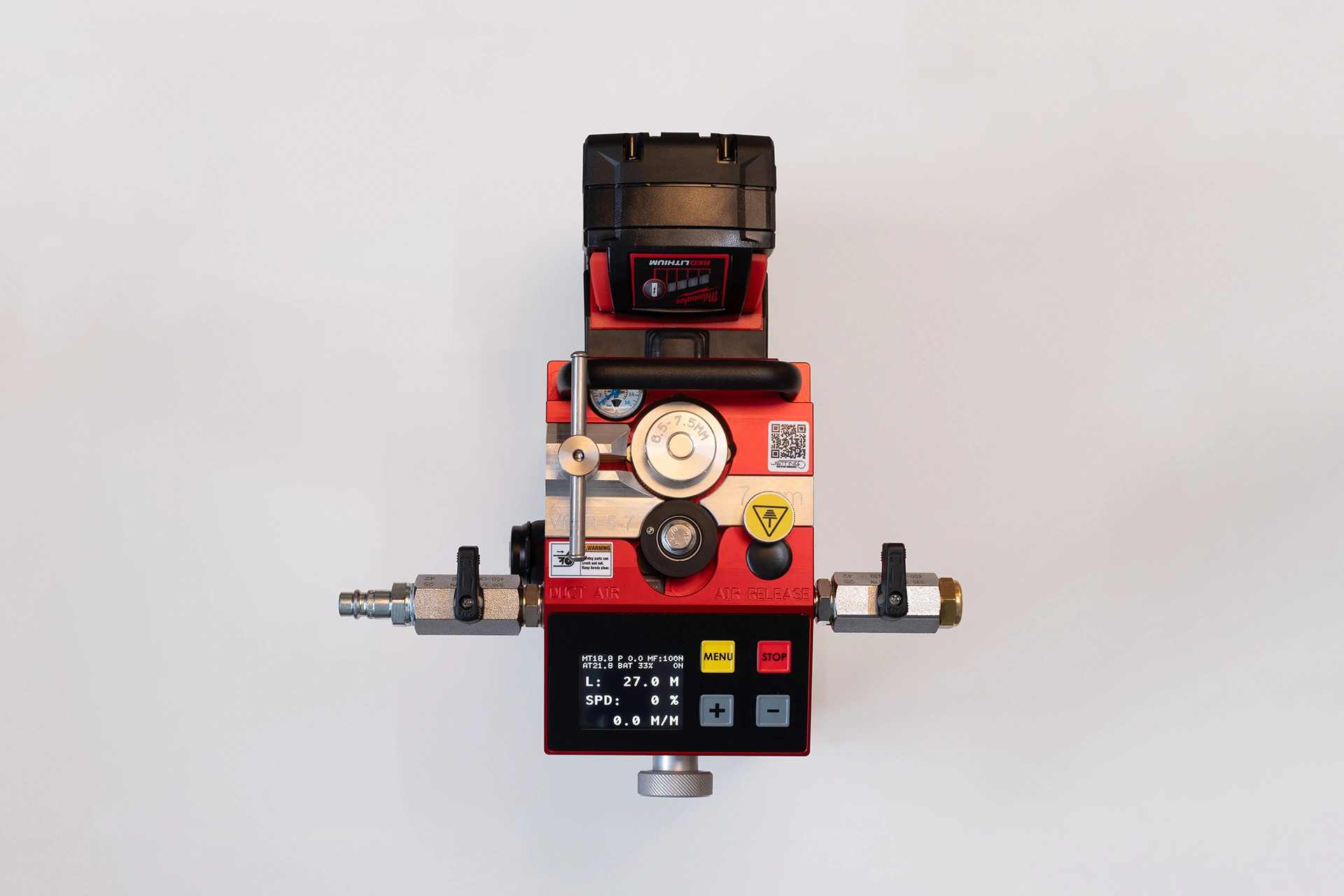

- Large display showing speed, installed distance, pushing force and air pressure
- Maximum installation speed: 394 ft/min
- Stepless pushing force up to 67 lbf
- Adjustable cable clamping force
- Compatible with JetLogger for installation documentation
- Soft start function for smooth operation and enhanced fiber protection
- Memory function retaining last used settings (e.g. pushing force) even after power off or battery replacement
- Service memory displaying total installed distance since commissioning
- Integrated duct air temperature monitoring
- Duct air release valve for rapid and controlled pressure reduction

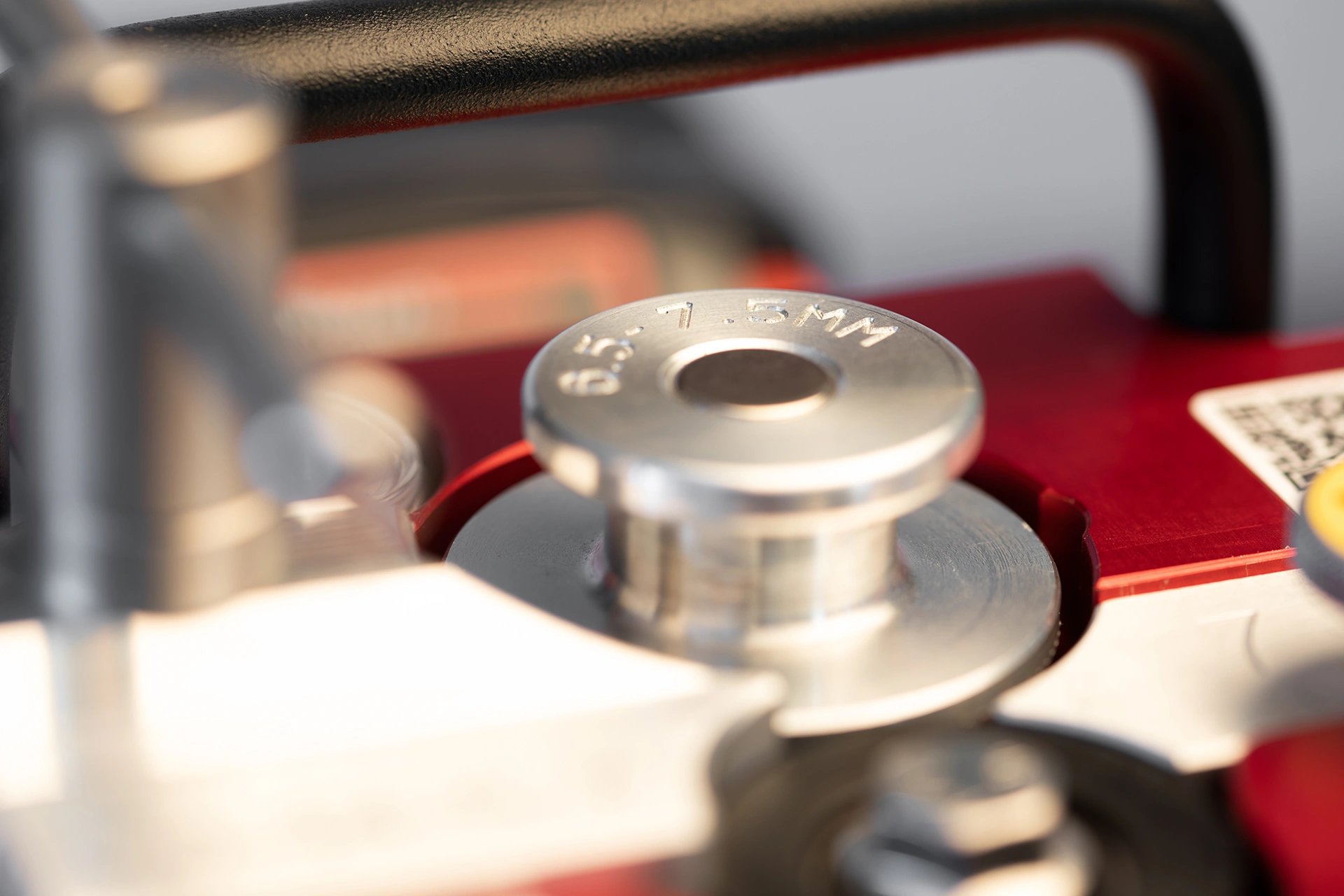

- Quick-change drive wheel system with magnetic mounting
- Integrated WiFi for software updates and feature enhancements
- Tool-free operation and configuration

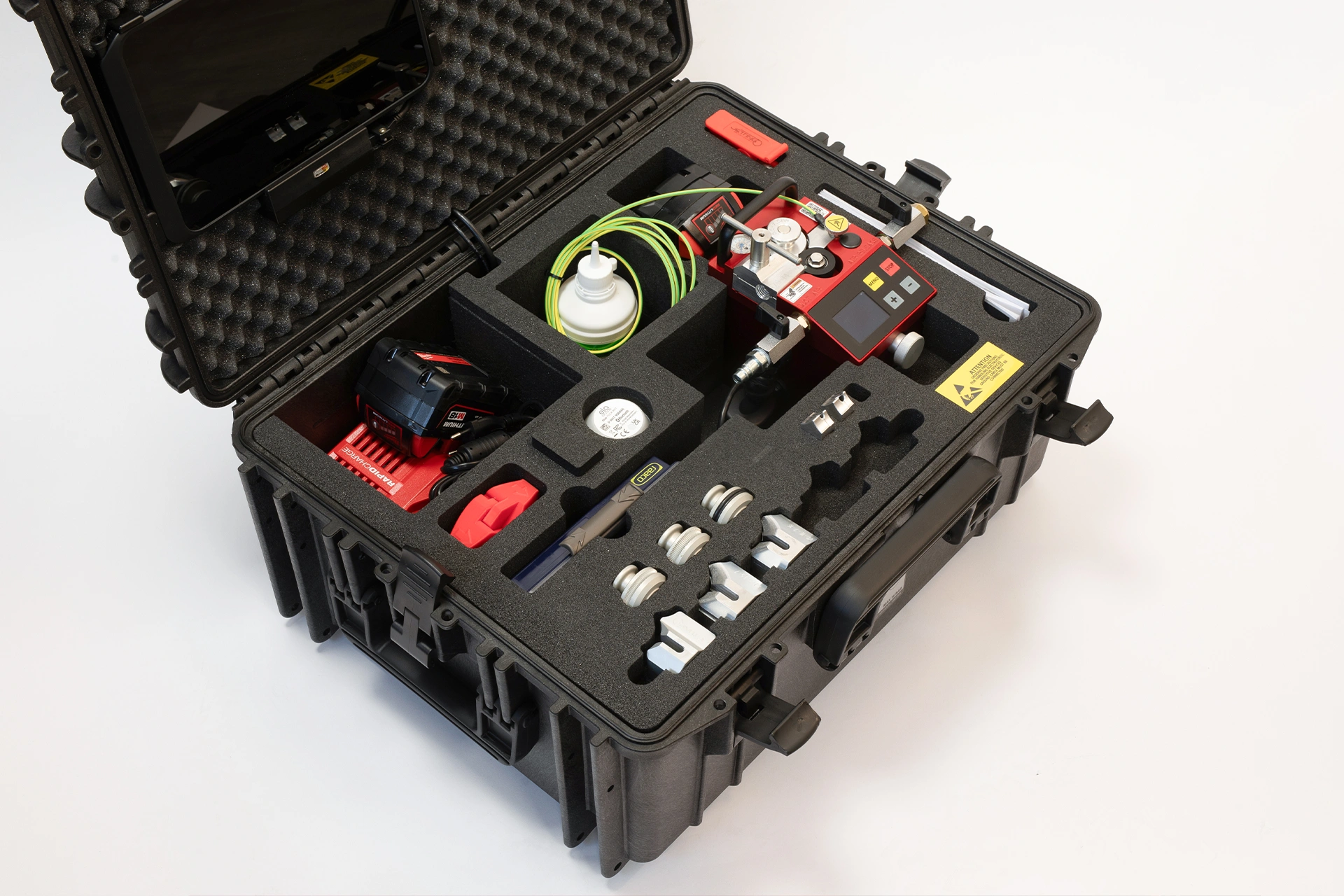

- STD CONFIGURATION

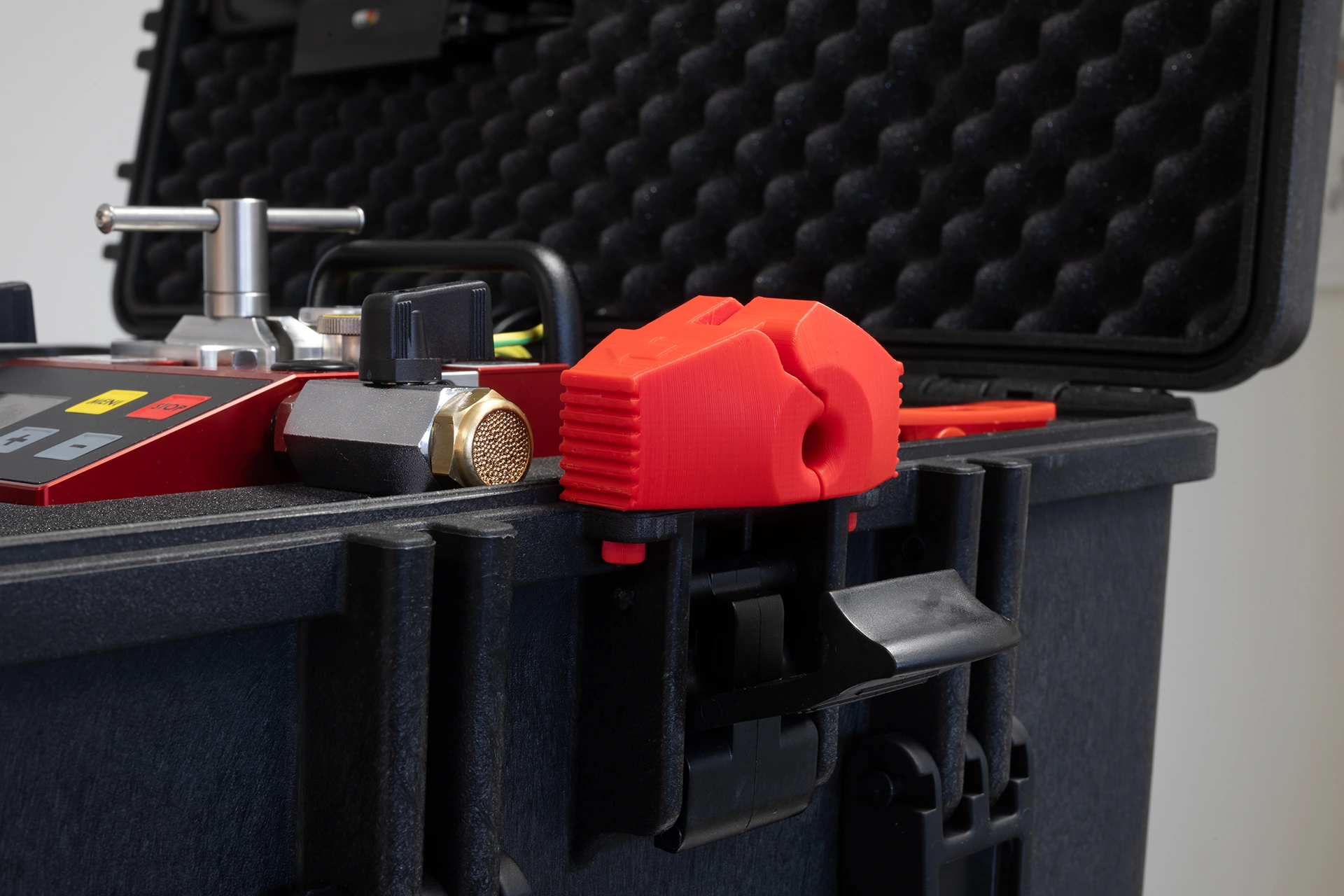

- Transport Case

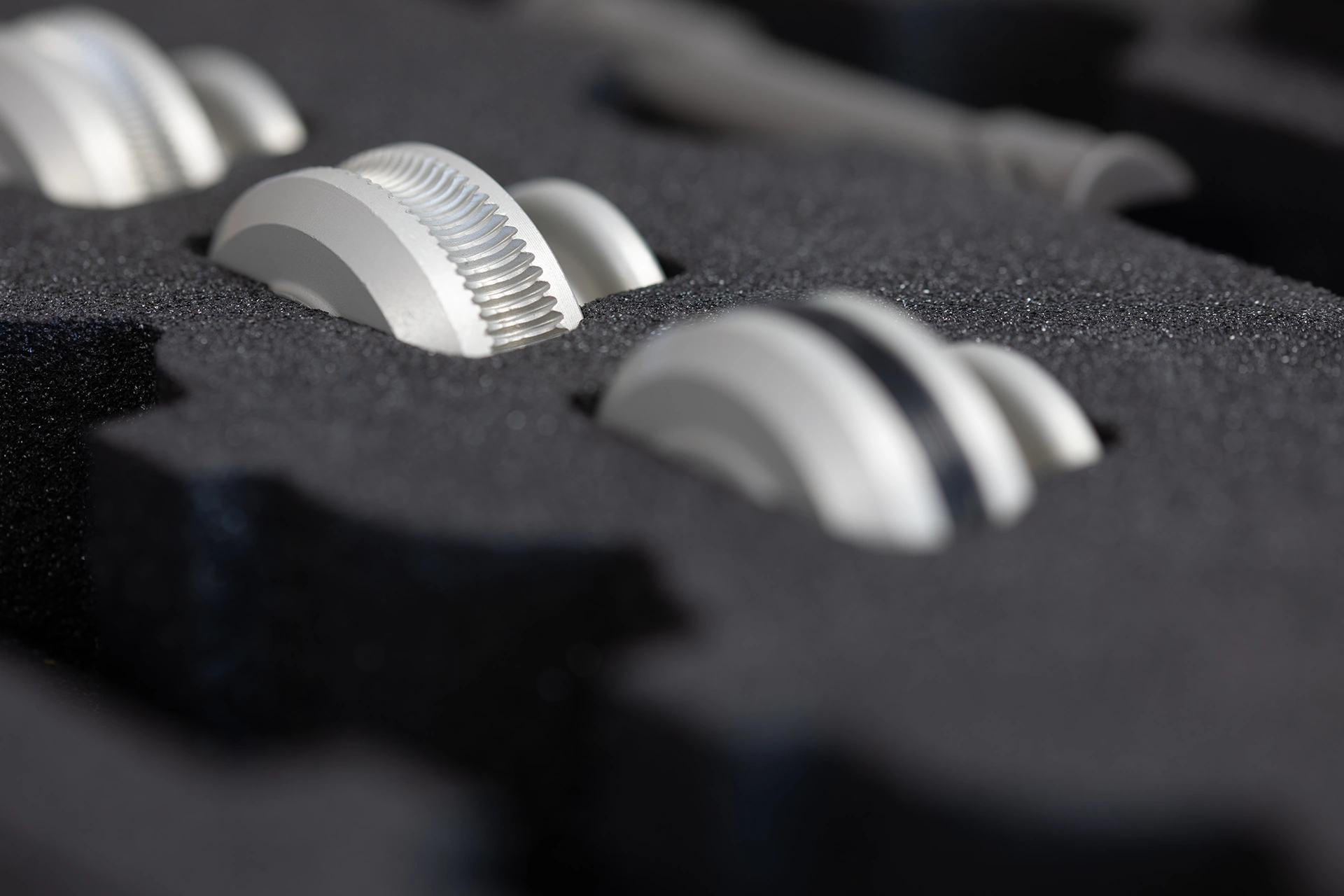

- 4 drive wheels
- 1 pc with rubber 0.8 – 3 mm
- 1 pc for 3.0 – 4.5 mm
- 1 pc for 4.5 – 6.5 mm
- 1 pc for 6.5 – 7.5 mm
- Battery charger 230 V
- 2 Batteries
- 1 Bottle Micro Duct Lube
- Service kit
- Ground cable
- ACCESSORIES FOR V0 7.5
- Jetting Working Table
- Table bracket. For safe installation on working table
- Jetlogger. Electronic documentation system
- Metal drive wheel for < 2.5 mm cable
- External cable guide for V0-series case
- 33 ft. Airhose 3/8”
- Cable Guides
- Duct Clamps
- Cable Seals
- Jetair 100270 Compressor
Jetdrum K8 Drum Rack
- Air Requirements by Duct Size
| Duct Dimension | Air Flow | Air Pressure |
|---|---|---|
| Up to Ø 4 mm (0.16 inches) | 3.5 cfm | 120–230 psi |
| Ø 4–7 mm (0.16–0.28 inches) | 5 cfm | 120–230 psi |
| Ø 8–10 mm (0.31–0.39 inches) | 10 cfm | 120–230 psi |
| Ø 12–16 mm (0.47–0.63 inches) | 21 cfm | 120–230 psi |
