Floating Kit – For V1, V2, V3 & V4 Machines
DESCRIPTION
Jetting Floating Kits are designed to safely reroute compressed air to the drive motors when performing floating installations.
During floating, water flows through the machine. To protect the motors, the quick coupling that normally feeds air to them must be plugged — while the motors instead receive air directly from the compressor via a CEJN coupling.
With the Floating Kit installed, your machine is fully prepared for floating. When switching back to regular fiber blowing, simply remove the kit and reconnect the original hoses.
Available Models
Art. No. 39005 — For machines with 8 mm air hose
Compatible with V1, V2 and older V3 units that use an 8 mm motor air hose.
Includes:
Plug hose for sealing motor air inlet
CEJN coupling for connecting compressor air to the motors
Art. No. 39007 — For machines with 12 mm air hose
Designed for the newer V3 versions and the V4 Grizzon™.
Includes:
Plug hose for motor air inlet
CEJN coupling for compressor-based motor air supply
- Note:
For older V3 machines with a 10 mm air hose, use Art. No. 39006.
How it Works

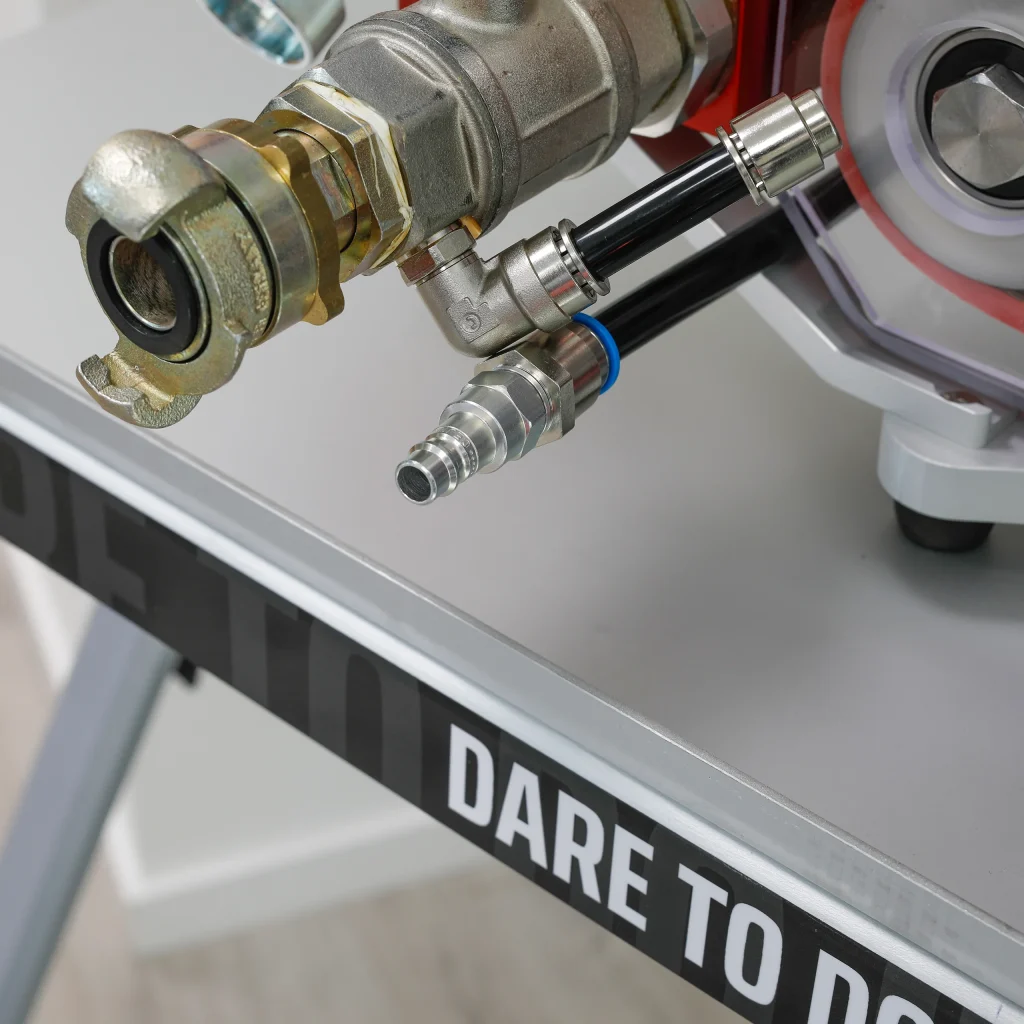

The Floating Kit changes the air-flow path:
Disconnect the existing air hose from the motor feed by pressing the quick coupling and pulling the hose out.
Insert the plug hose into the quick coupling to block water from entering the motor system.
Attach the CEJN coupling to the machine’s air hose. This hose is then connected to your compressor, feeding compressed air directly to the motors during floating.
The machine is now ready for floating operations.
To return to normal fiber blowing: remove the kit and reconnect the original hoses.
Compatible Machines
| Machine | Air Hose Size | Floating Kit |
|---|---|---|
| V1 | 8 mm | 39005 |
| V2 | 8 mm | 39005 |
| V3 (older) | 8 mm | 39005 |
| V3 (older variant) | 10 mm | 39006 |
| V3 (new) | 12 mm | 39007 |
| V4 Grizzon™ | 12 mm | 39007 |
